Equipment model

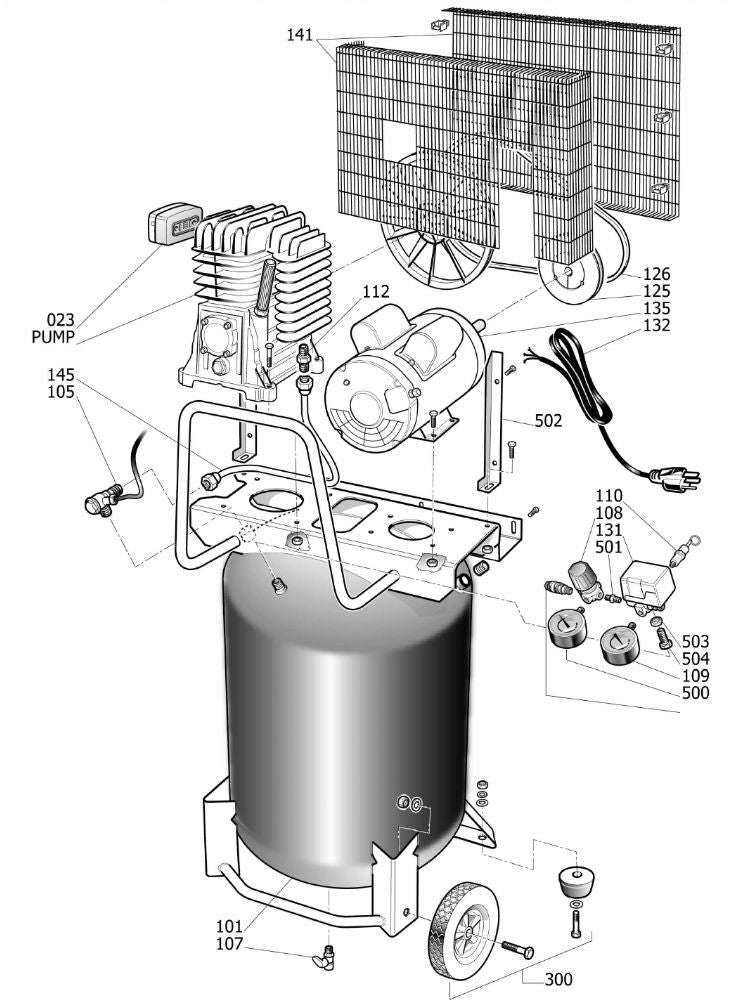

Find the right part for your Central Pneumatic 61489. Use the illustrated parts diagram and original part numbers below to identify the component you need. Available replacement parts can be added directly from the schematic.
Confirm the model number shown on your equipment before choosing a catalog section.
Catalog section
| Diagram Callout # | Part Name Item | Quantity Used | Part Number | Price | Part information |
|---|---|---|---|---|---|
| 023 | Air Filter | 1 | AFL-6NSJ0P6716DNC | $5.95 | |
| 131 | Pressure Switch | 1 | PSW-6CYJT2CSHFPZG | $20.95 | |
| 126 | Belt | 1 | BLT-07BGPY29YXR4H | $9.95 | |
| 110 | Safety Valve | 1 | SFV-7WY1KXY2C8B7R | $15.95 | |
| 109 | Pressure Gauge | 1 | GAU-TQT3NKP2A0NY1 | $10.95 | |
| 106 | Quick Coupling | 1 | — | $8.95 | |
| 105 | Check Valve | 1 | CKV-CFFFDWZKWNJBY | $16.95 | |
| 300 | Wheel Kit | 1 | WHK-ZRB546AGT61SF | $26.59 | |
| Pump | Pump | 1 | PMP-MT7EQTYFW1JJ3 | $176.95 |

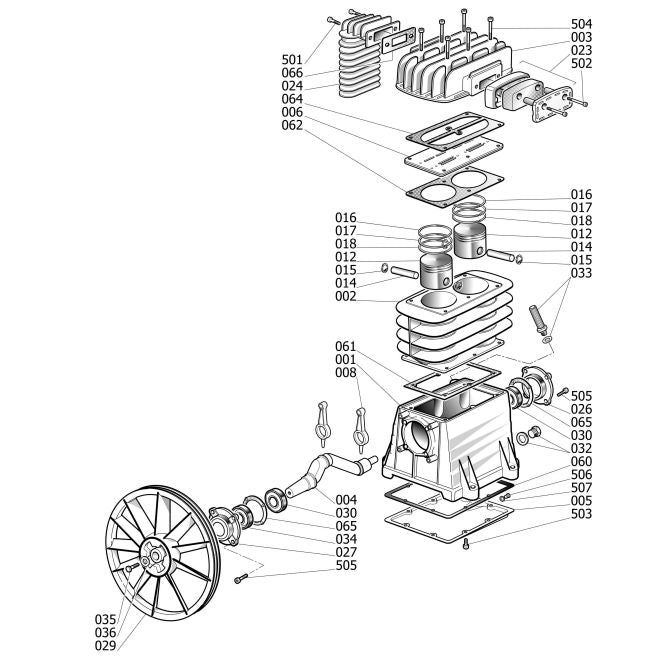

Catalog section
| Diagram Callout # | Part Name Item | Quantity Used | Part Number | Price | Part information |
|---|---|---|---|---|---|
| 033 | Oil Breather | 1 | PLG-RJBPREAQTXQ7R | $2.95 | |
| 023 | Air Filter Kit | 1 | AFL-6NSJ0P6716DNC | $5.95 | |

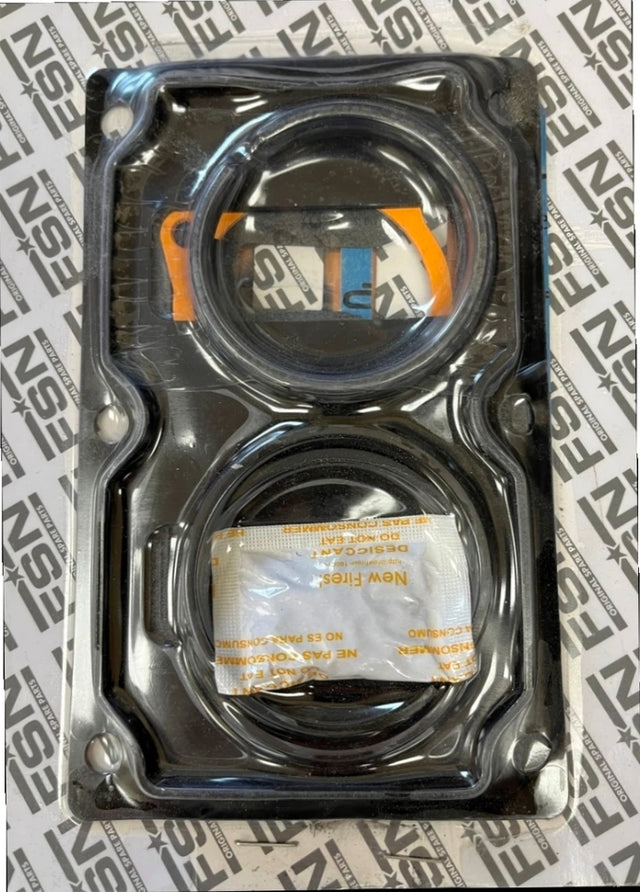

| 912 | Piston Ring Kit with Gaskets | 1 | PRG-AYRCCRAKWM5Z9 | $23.95 | |

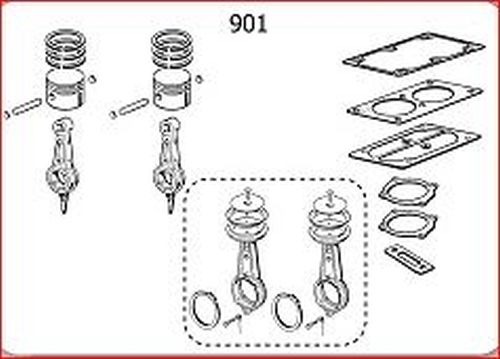

| 901 | Piston/Connecting Rod Kit | 1 | CPK-88PYVNHEZ81ZE | $55.95 | |
| 029 | Flywheel | 1 | FLY-EENECNRKBQMDP | $28.95 | |
| Gasket Kit | 1 | GKT-6D87DY4KA5G8S | $24.95 | ||
| Pump | Pump | 1 | PMP-MT7EQTYFW1JJ3 | $176.95 | |
| Valve Plate Assembly | 1 | VPL-4410HKQRW251X | $22.95 |
