Central Pneumatic 68127 Air Compressor Parts

Find the right part for your Central Pneumatic 68127. Use the illustrated parts diagram and original part numbers below to identify the component you need. Available replacement parts can be added directly from the schematic.

Model 68127

Confirm the model number shown on your equipment before choosing a catalog section.

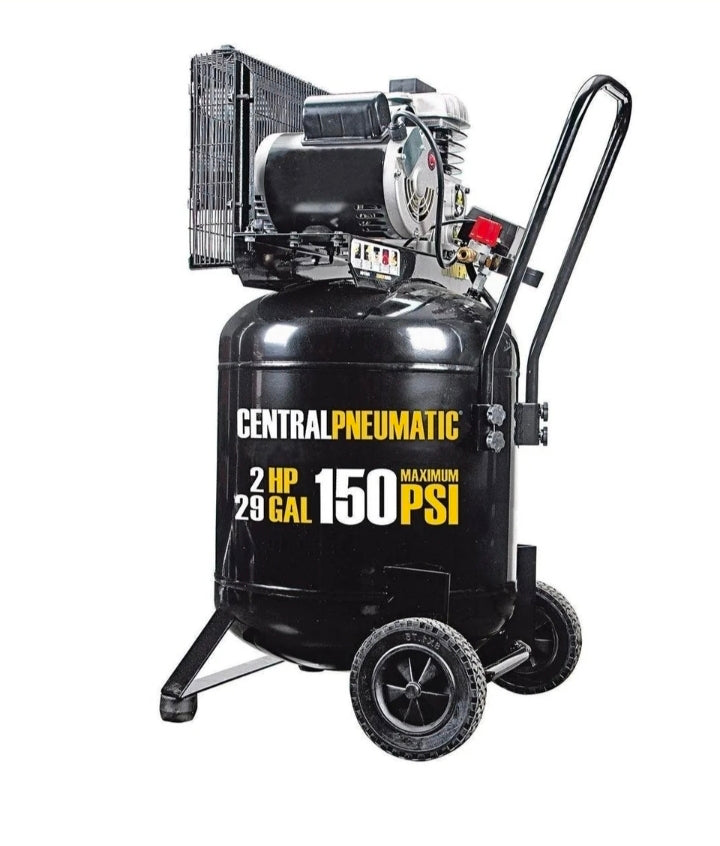

Central Pneumatic 68127

Catalog sections

Catalog section

Main Unit Assembly

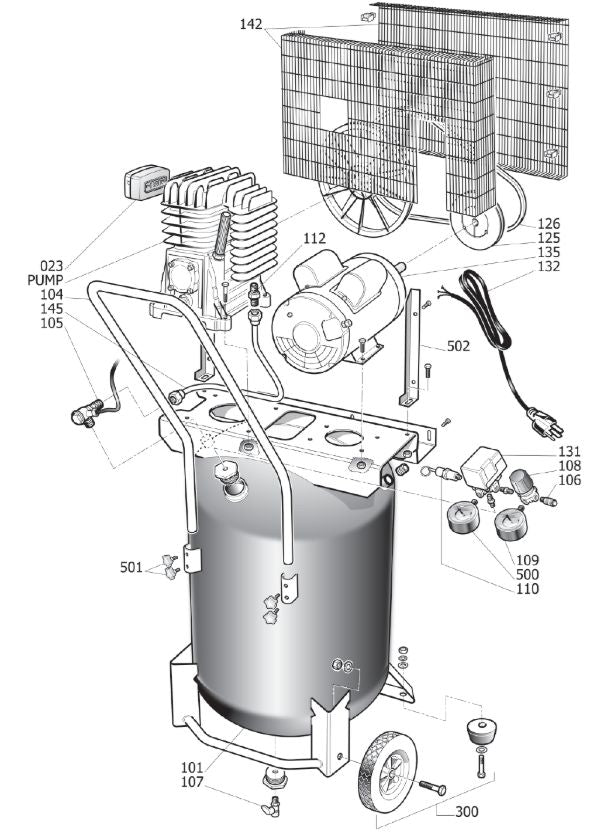

Central Pneumatic 68127 – Main Unit Assembly
Parts in Main Unit Assembly
Diagram Callout # Part Name Item Quantity Used Part Number Price Part information

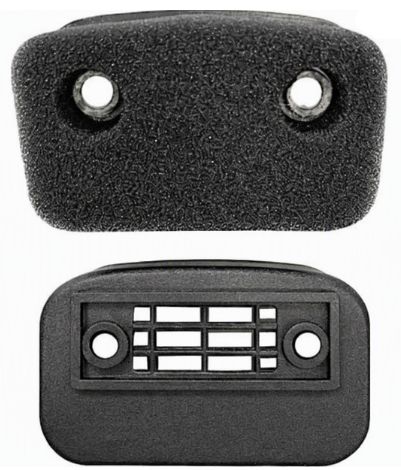

023 AIR FILTER 1 AFL-6NSJ0P6716DNC $5.95
101 TANK 29 GAL 1 — Reference Only
104 HANDLE 1 — Reference Only

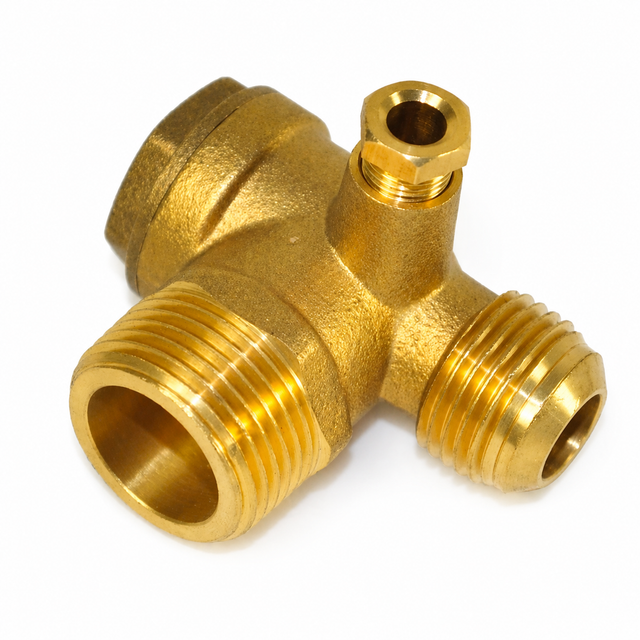

105 CHECK VALVE 1 CKV-CFFFDWZKWNJBY $16.95
106 QUICK COUPLING 1 — $8.95
107 TAP BALL VALVE 1 — Reference Only
108 PRESSURE REGULATOR 1 REG-5RYX9MR34VEBW $10.95
109 GAUGE 50 1/4 RAD CPI 1 GAU-TQT3NKP2A0NY1 $10.95

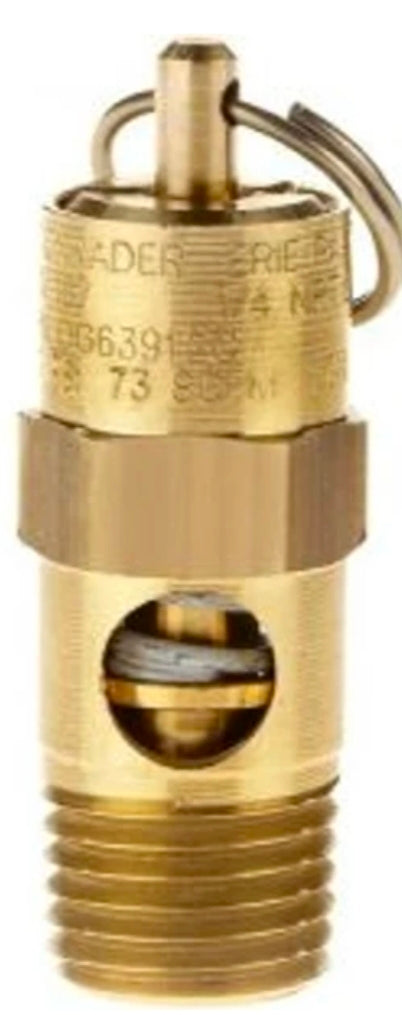

110 SAFETY VALVE 1 SFV-7WY1KXY2C8B7R $15.95
112 NIPPLE 1 — Reference Only
125 PULLEY 90 x 1A 1 — Reference Only

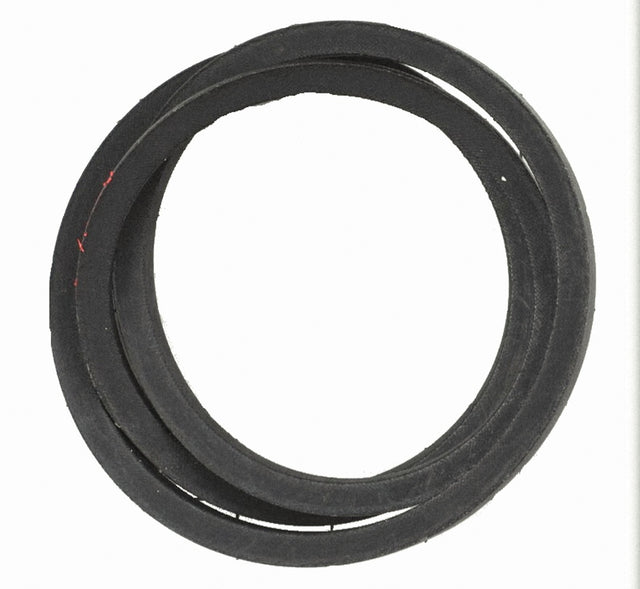

126 BELT 1 BLT-07BGPY29YXR4H $9.95

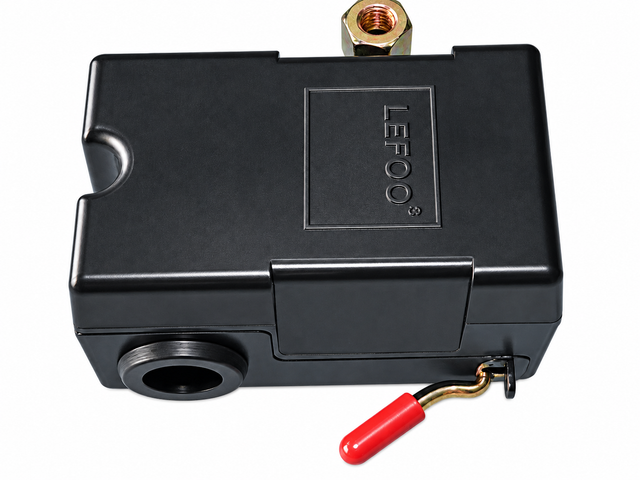

131 PRESSURE SWITCH 1 PSW-6CYJT2CSHFPZG $20.95
132 CORD WITH PLUG 1 — Reference Only
135 MOTOR HP2 M 120/60 1 — Reference Only
142 BELT GUARD 1 — Reference Only
145 SENDING PIPE 1 — Reference Only
300 KIT WHEELS 1 WHK-ZRB546AGT61SF $26.59
500 GAUGE 50 1/4 RAD CPI LONG 1 — Reference Only
501 KNOB L15 1 — Reference Only
502 SUPPORT FOR BELT GUARD 1 — Reference Only

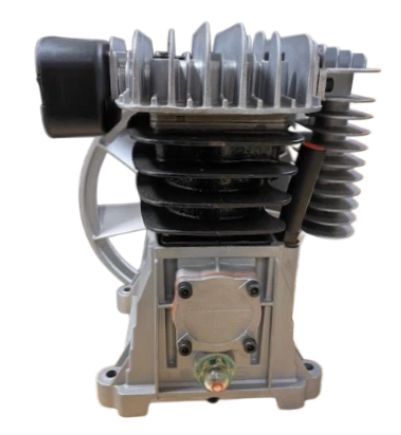

PUMP PUMP B2800 WITH AFTERCOOLER 180° 1 ORP-MT7EQTYFW1JJ3 $176.95

Catalog section

Pump Assembly

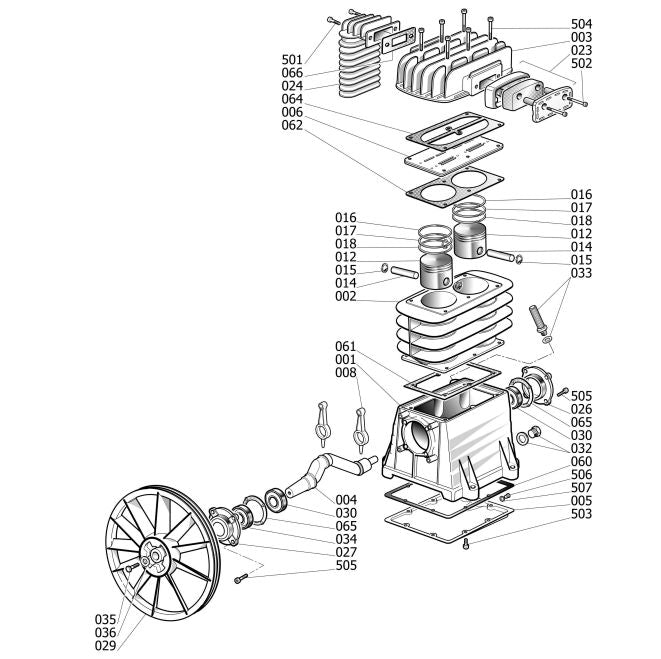

Central Pneumatic 68127 – Pump Assembly
Parts in Pump Assembly
Diagram Callout # Part Name Item Quantity Used Part Number Price Part information
001 CRANKCASE 1 — Reference Only
002 CYLINDER 1 — Reference Only

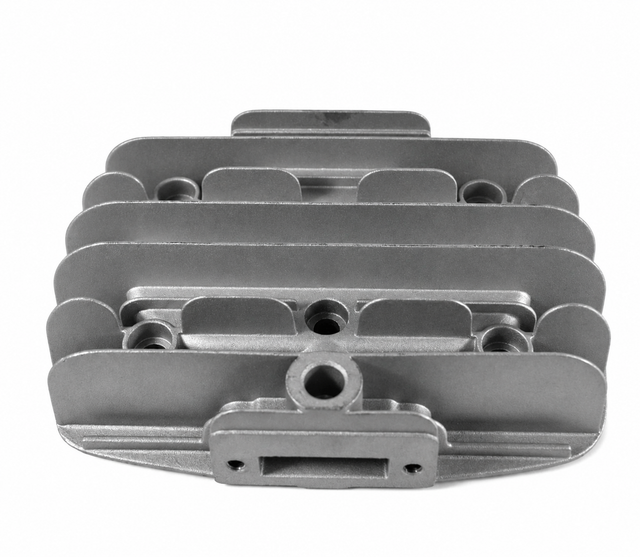

003 HEAD 1 HED-6AHTZS7V3VDKG $20.95
005 CRANKCASE BOTTOM 1 — Reference Only

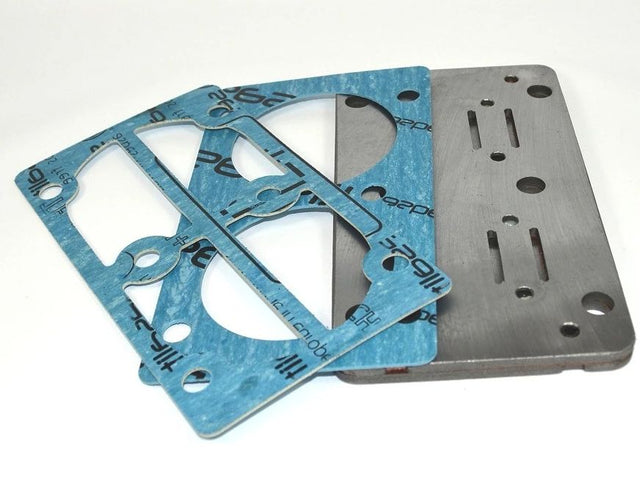

Valve Plate Assembly 1 VPL-4410HKQRW251X $22.95
008 CONROD 2 — Reference Only

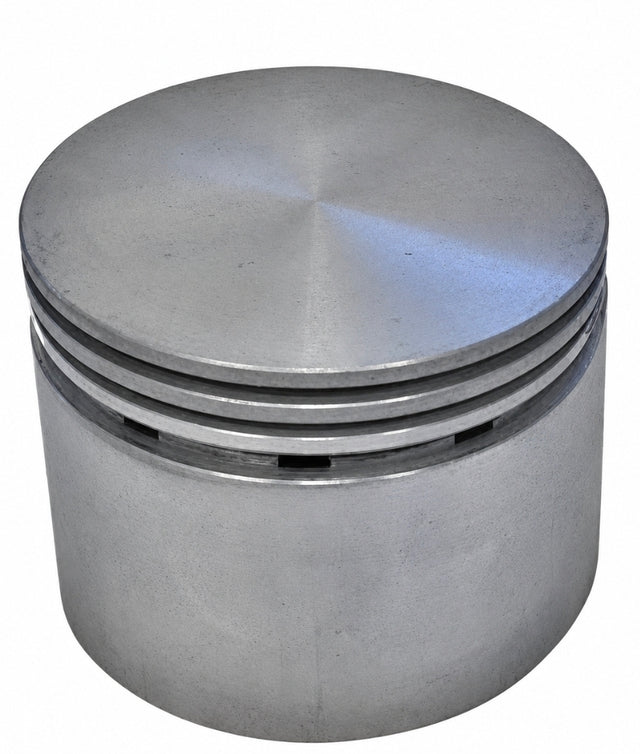

012 PISTON 2 PST-JBXRSFT2WJM27 $28.95
014 PISTON PIN 2 PPN-9JZ5G91X8PPVR $11.95
015 SNAP RING 4 — Reference Only
016 SEAL AC 2 SEA-ZCG7E3X21Z1D0 $3.95
017 SEAL ROS 2 SEA-F02N8K0HE2F6W $3.95
018 SEAL ROF 2 — Reference Only
023 AIR FILTER 1 AFL-6NSJ0P6716DNC $5.95
024 AFTERCOOLER 2 AFC-ZR64PJ2HM35E8 $21.95
026 COVER LOV 1 — Reference Only
027 COVER LV 1 — Reference Only

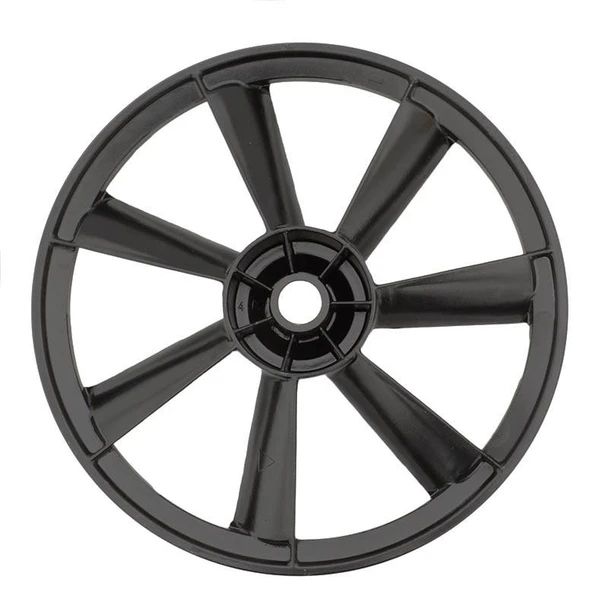

029 FLYWHEEL 1 FLY-EENECNRKBQMDP $28.95
030 BEARING 2 — Reference Only
032 OIL LEVEL 1 — Reference Only

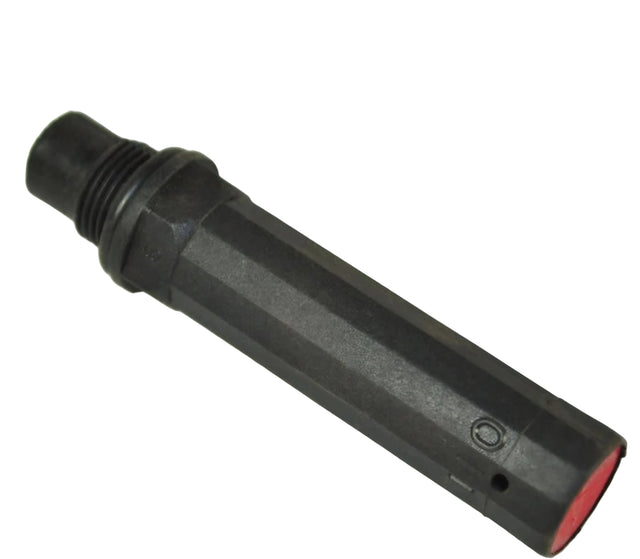

033 BREATHER 1 PLG-RJBPREAQTXQ7R $2.95
034 GASKET 1 — Reference Only
035 SCREW 1 — Reference Only
036 WASHER 1 — Reference Only

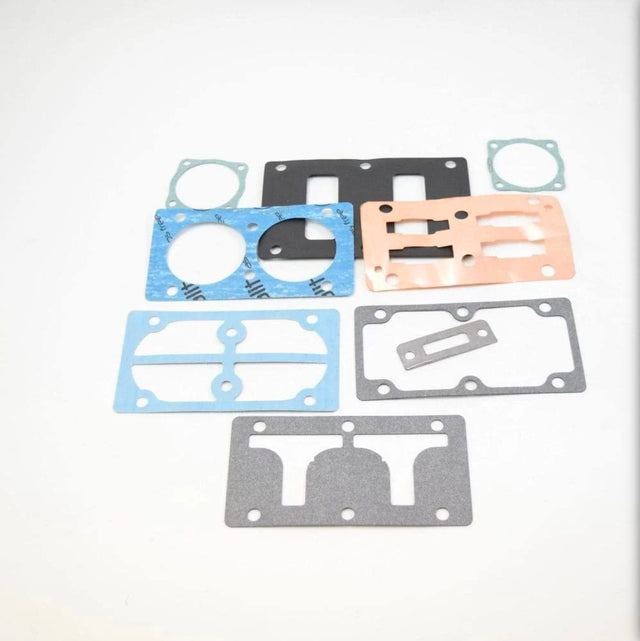

060 GASKET CRANKCASE 1 — $24.95
061 GASKET CRANKCASE-CYLINDER 1 — $24.95
065 GASKET COVER 2 — $24.95
066 GASKET AFTERCOOLER 1 — $24.95
501 SCREW 2 — Reference Only
502 SCREW 2 — Reference Only
503 SCREW 12 — Reference Only
504 SCREW 6 — Reference Only
505 SCREW 8 — Reference Only
506 SCREW 1 — Reference Only
507 WASHER 1 — Reference Only
