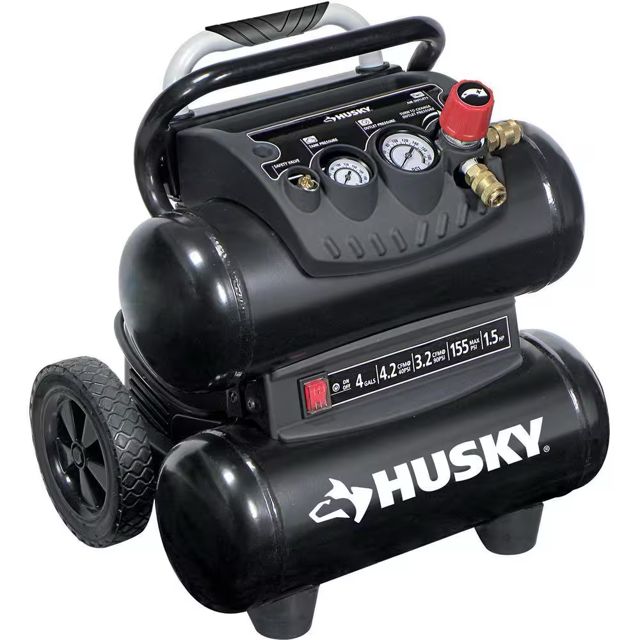

Husky H1504ST2 Air Compressor Parts

Find the right part for your Husky H1504ST2. Use the illustrated parts diagram and original part numbers below to identify the component you need. Available replacement parts can be added directly from the schematic.

Model H1504ST2

Confirm the model number shown on your equipment before choosing a catalog section.

Husky H1504ST2

Catalog sections

Catalog section

Main Unit Assembly

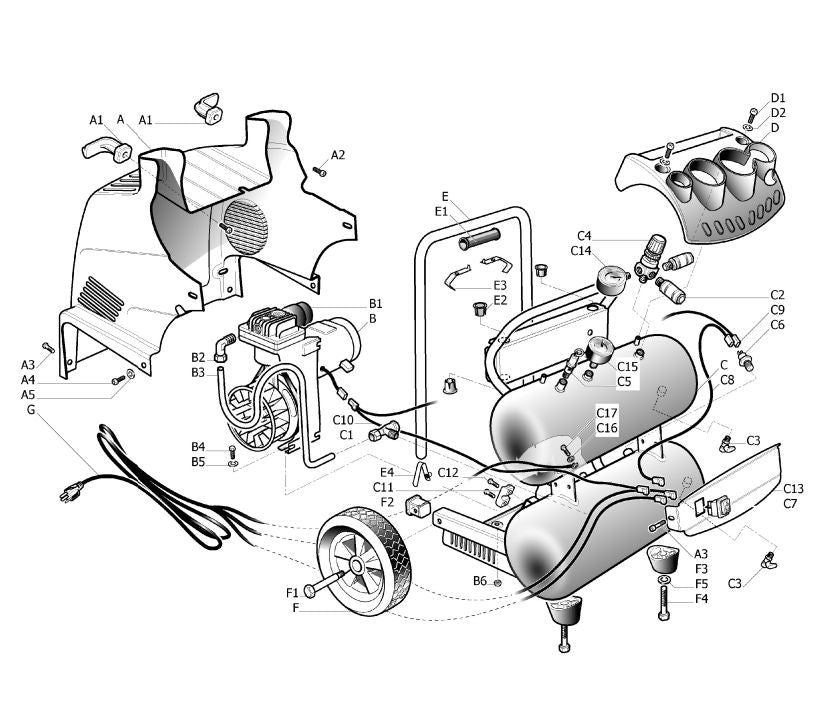

H1504ST2 Main Unit Assembly
Parts in Main Unit Assembly
Diagram Callout # Part Name Item Quantity Used Part Number Price Part information

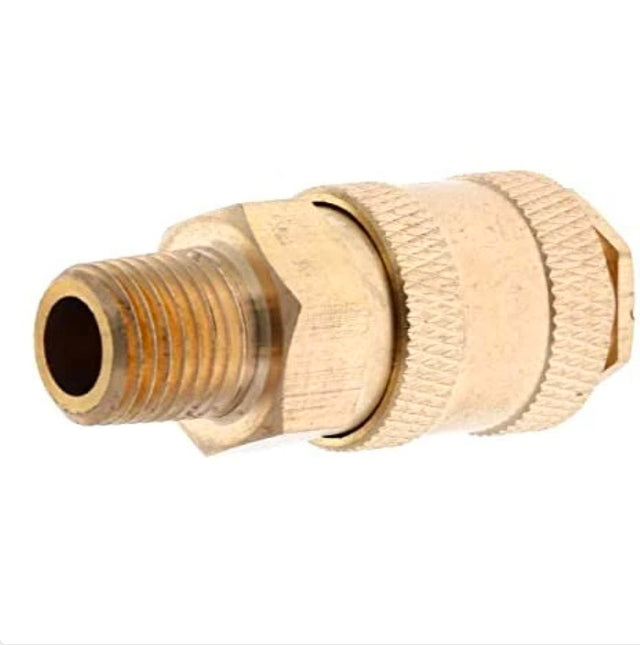

C2 QUICK COUPLING 1/4"M NPT 2 QCP-1XRZ42MGDQYNZ $9.95

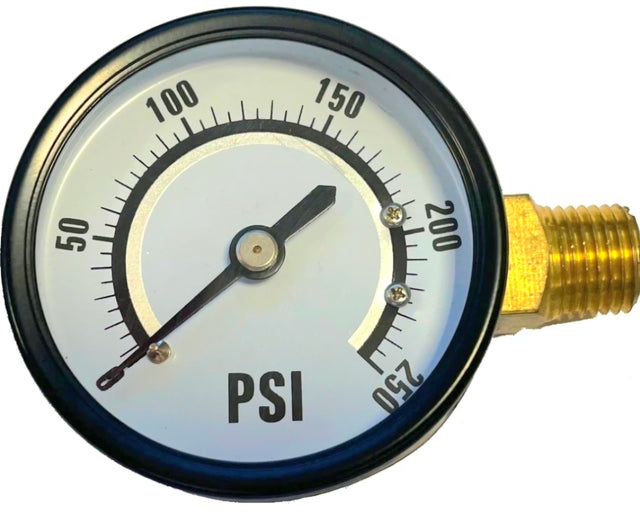

C14 2" Gauge 1 GAU-WW4CG95TNNWMH $7.95
C5 Safety Valve 1 ORP-7WY1KXY2C8B7R Reference Only
A3 Screw 6 SCR-H397CY9PSZNVE $2.49

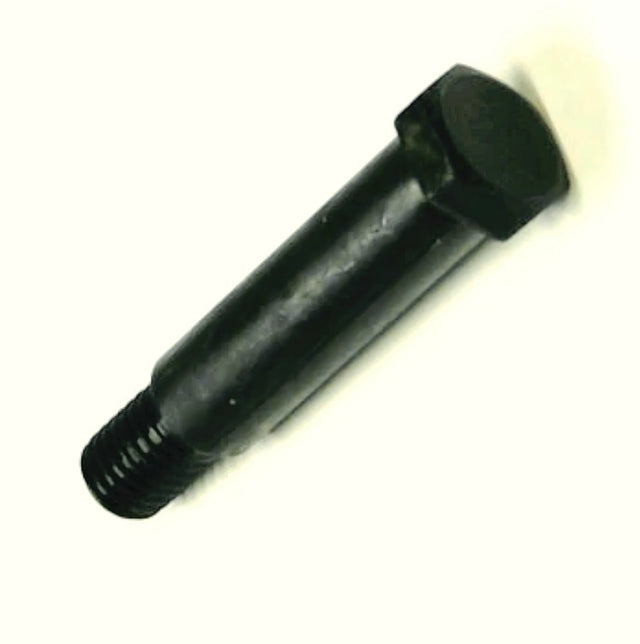

F1 Wheel Pin 2 WPN-6S76ZTQSFZ9ST $2.95
A2 Screw 2 SCR-T8GESPY68S3R4 $2.49
A1 Plastic Cord Hook 2 HOK-X2N3CYM52JAHY $2.49

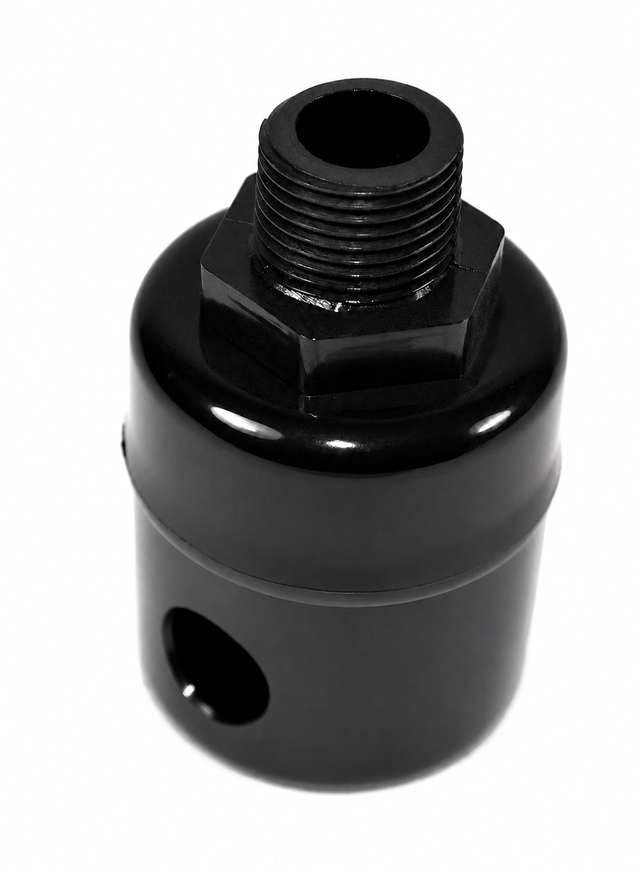

B1 Air Filter 1 AFL-5TW32ZG4KBFGD $6.95

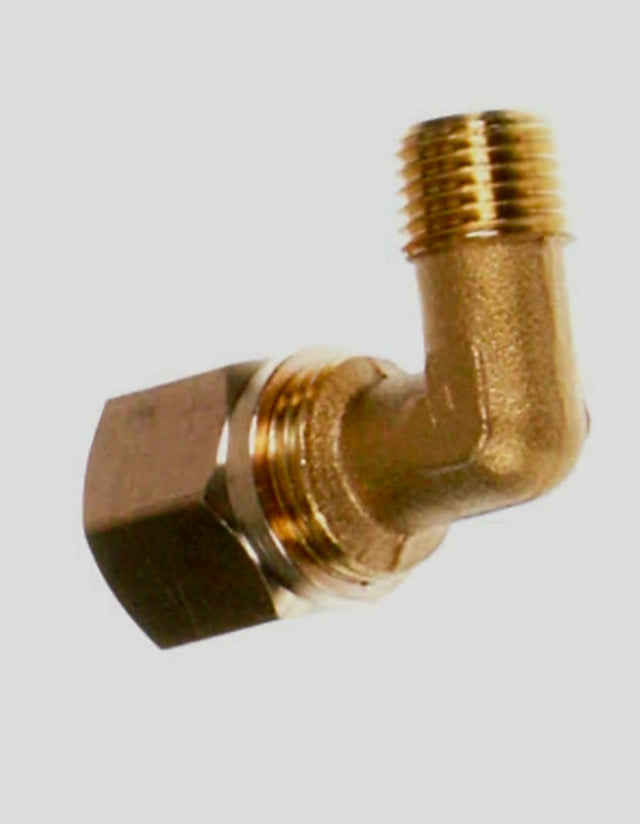

B2 Elbow 1 ELB-4PGHA4QFRS4D4 $7.95

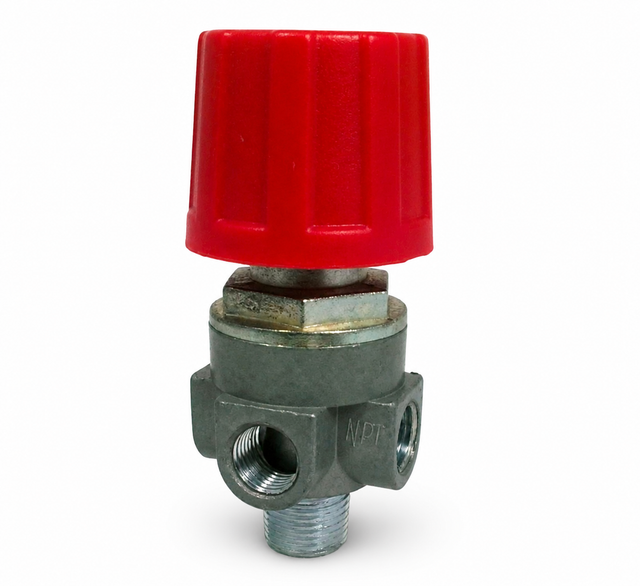

C4 Regulator 1 REG-MVCJA4SKV5TGF $10.95

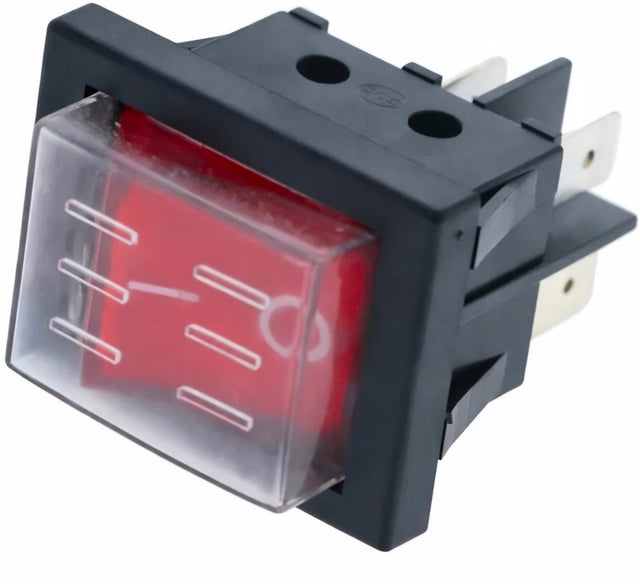

C7 Rocker Power Switch 1 SWT-9VG6X0YKR8R32 $5.95
C15 Pressure Gauge 1 GAU-5WMTS8C2PQDDM $6.95

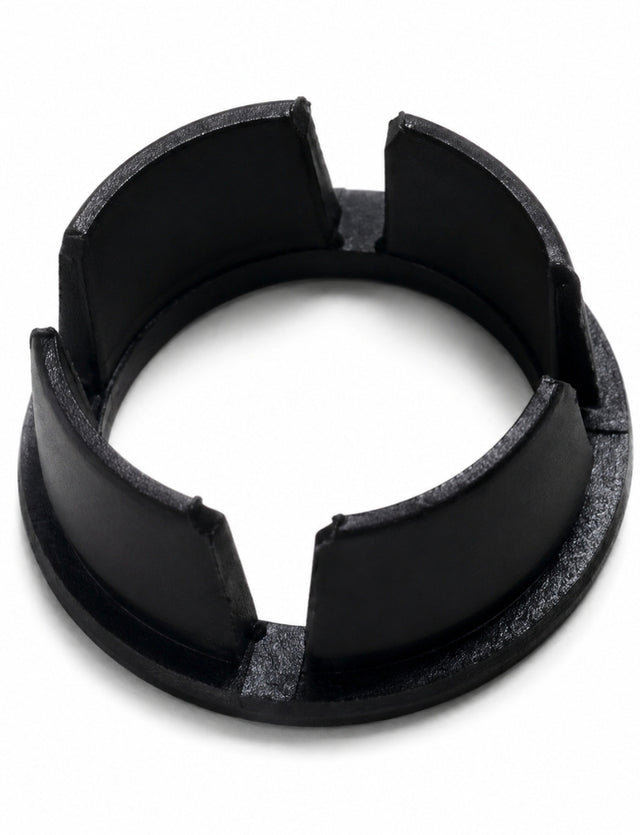

E2 Bushing 4 BSH-3AKAQBF62Q3WT $2.49

Catalog section

Pump Assembly

Section OL227

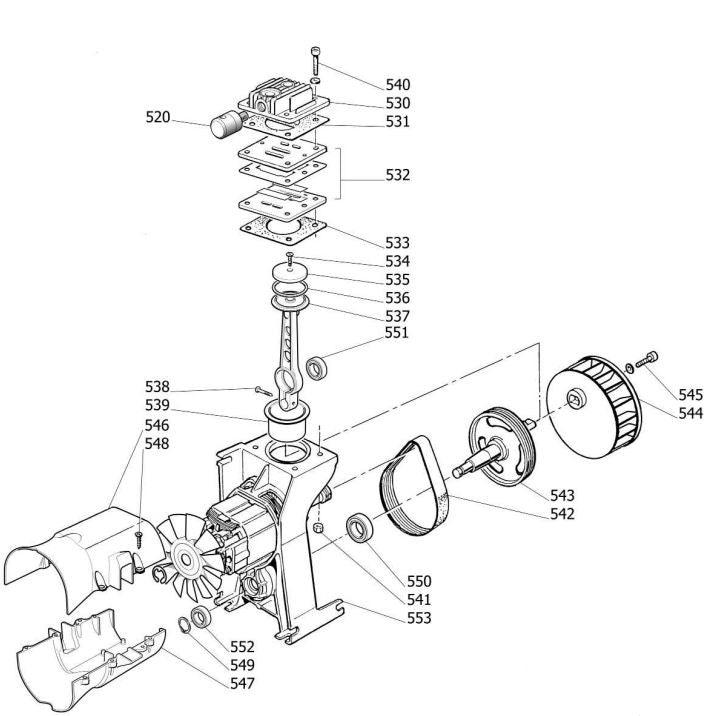

H1504ST2 Pump Assembly

The H1504ST2 pump uses the OL227 pump

Parts in Pump Assembly
Diagram Callout # Part Name Item Quantity Used Part Number Price Part information

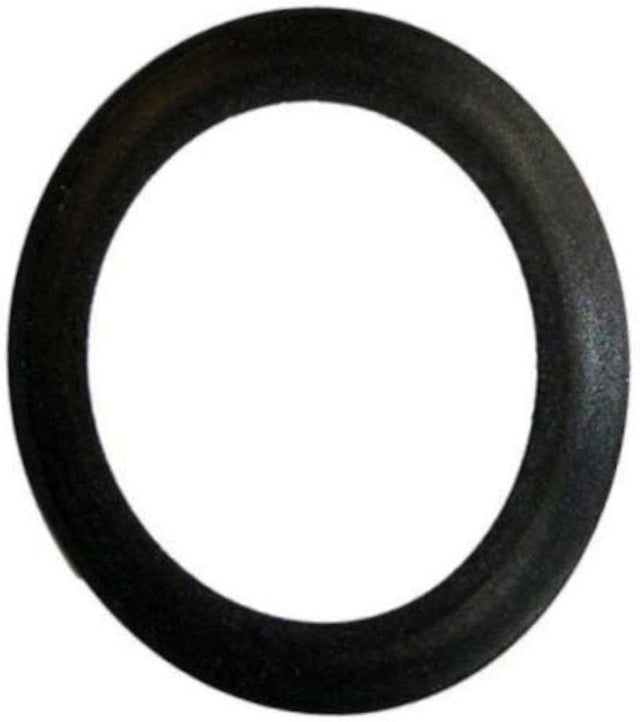

536 Piston Ring / Seal 1 SEA-80XXCNXBVDZYE $7.95

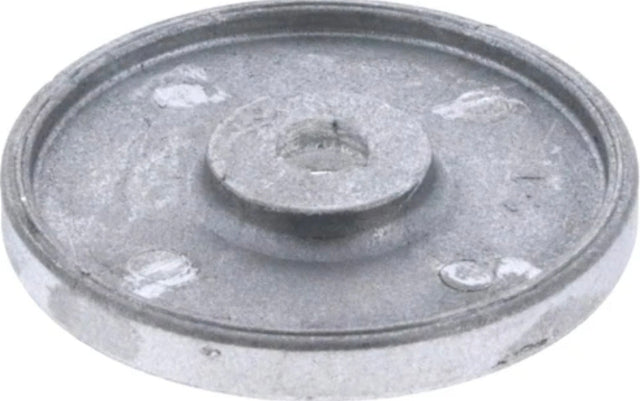

535 Conrod Cover 1 COC-MZ18CNXEQSGR8 $10.95

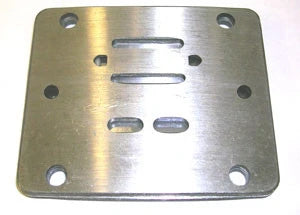

532 Valve Plate Assby 1 VPL-6447V5A40VK4S $9.95
520 Air Filter 1 AFL-5TW32ZG4KBFGD $6.95

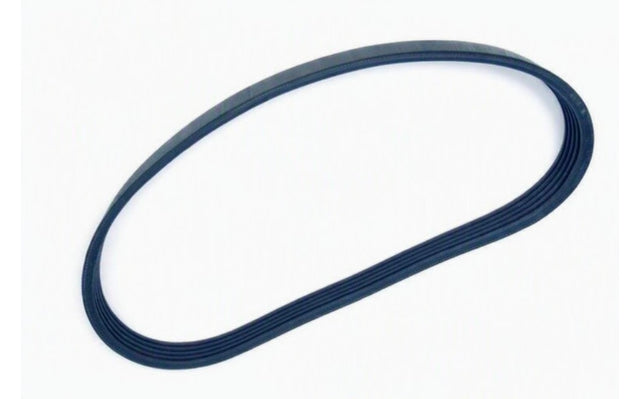

542 Belt 1 BLT-P70PK65GGJXRX $20.95
534 Screw 1 SCR-272ZFA57ZY429 $2.49

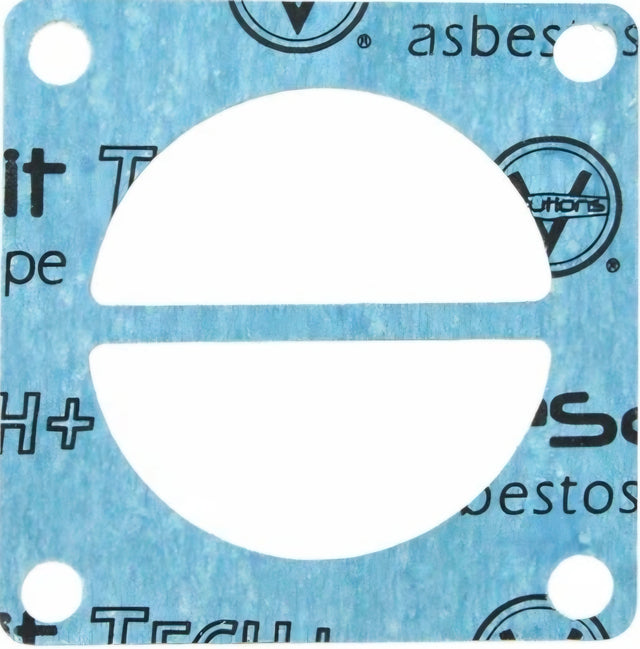

531 Head Valve Plate Gasket 1 — $3.95

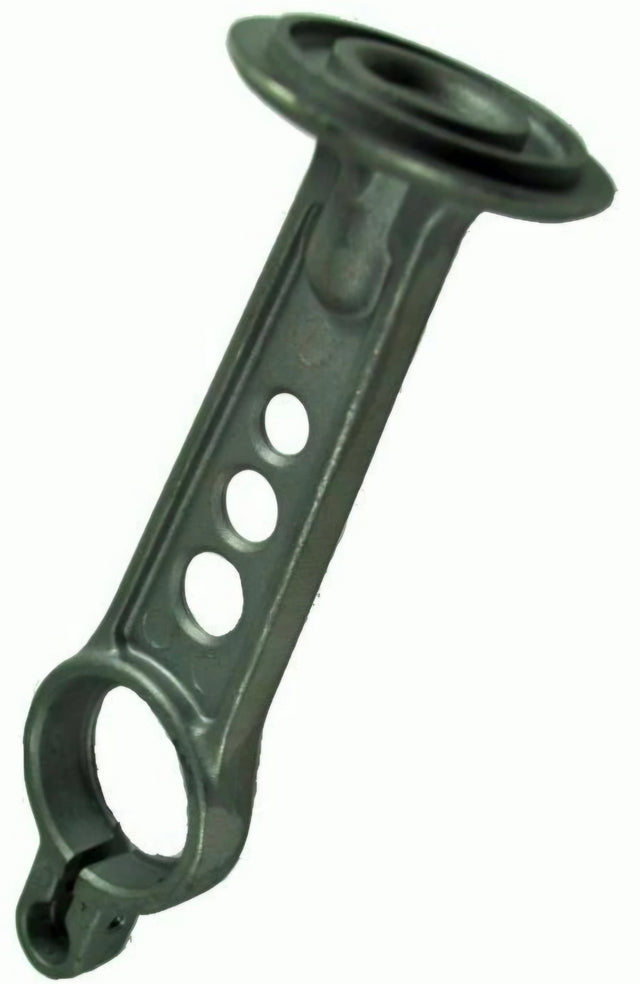

537 Connecting Rod / Piston 1 CPK-8K80QR7ADMQ45 $9.95
539 Cylinder 1 CYL-0CA6X9GWQ5CWS $18.95
