Catalog section

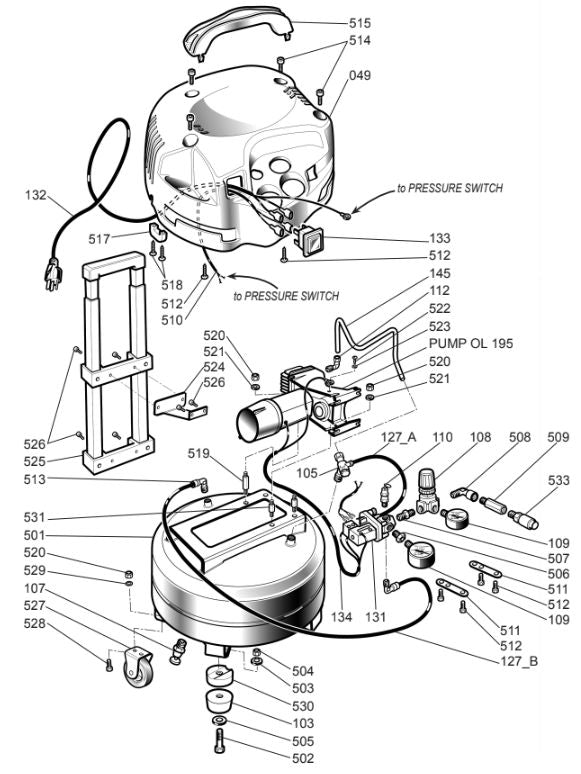

Main Unit Assembly
| Diagram Callout # | Part Name Item | Quantity Used | Part Number | Price | Part information |
|---|---|---|---|---|---|
| 103 | Rubber Foot | 2 | FOT-HFWMTBKZYTBQK | $2.49 | |
| 108_B | Regulator Knob | 1 | REG-AWN91P4FF6W77 | $14.95 | |

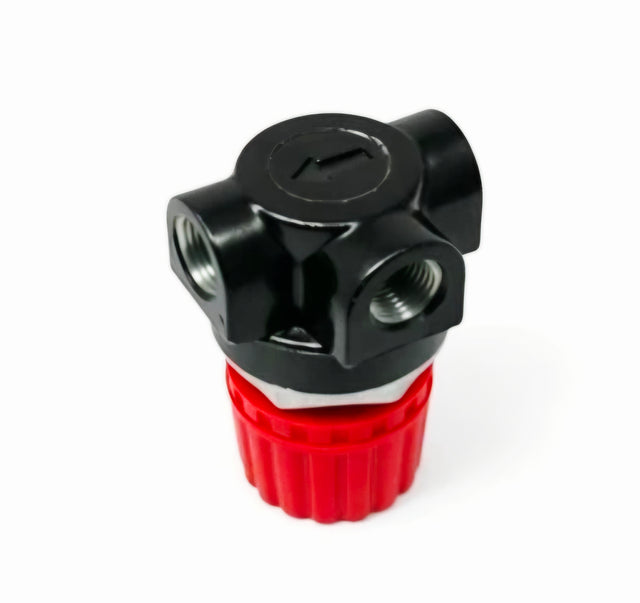

| 108 | Regulator | 1 | REG-2PN6Y8M4BK4JR | $12.95 | |
| 109 | GAUGE 40 1/8 S 0-250 PSI | 2 | GAU-PA9QT52J40NA0 | $7.95 | |
| 112 | Elbow 1/4" Mx8 | 2 | ELB-86WGC1M7XQRVK | $6.95 | |
| 127_B | Rilsan Tube 6mm OD 9" | 1 | PIP-22DM75FMF2N7W | $8.95 | |
| 127_A | Rilsan Tube 6mm OD 20" | 1 | PIP-5962P94FTQPHR | $5.95 | |
| 133 | SWITCH LUM.V115 3/4HP W/COV | 1 | SWT-9VG6X0YKR8R32 | $5.95 | |
| 504 | Nut M8 | 2 | NUT-0YE3SKDVS39GC | $2.49 | |
| 514 | Screw | 4 | SCR-GT3Y3C2VDRDQ3 | $2.49 | |
| 505 | WASHER 8X24X2 | 2 | ORP-D730GCDGRGZQA | $2.49 | |
| 507 | DOUBLE SCREW 3/8"M-1/4"M | 1 | ORP-PYD7ACJXMTJXH | $3.95 | |
| 518 | SCREW PARKER AB 3,9X16 | 2 | ORP-03VRZCV9N0SWF | $2.49 | |
| 528 | SCREW (TE 6 X 16) | 4 | ORP-G77XBS4S7G3TR | $2.49 | |
| 530 | SPACER | 2 | ORP-CHEM145X9082Y | $2.95 |
