Type / revision

Husky H1506FWH Air Compressor Parts

Type 2

For wheeled Husky H1506FWH units manufactured beginning August 1, 2008. This Type 2 configuration uses the mini-style pressure switch, changed regulator manifold, and the source-specific OL195B pump assembly.

Catalog sections

Catalog section

Main Unit Assembly

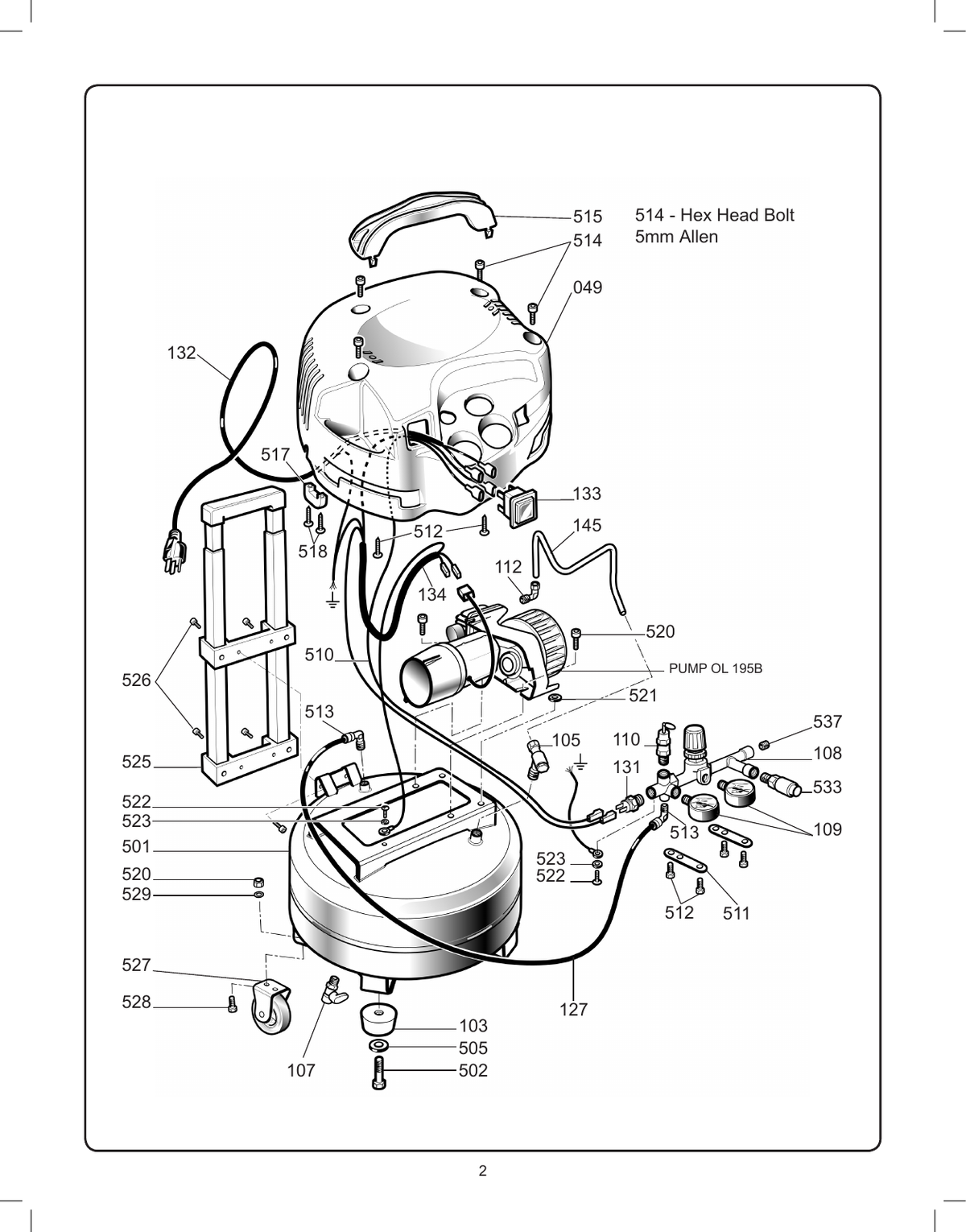

Husky H1506FWH – Main Unit Assembly
Parts in Main Unit Assembly
Diagram Callout # Part Name Item Quantity Used Part Number Price Part information
049 PLASTIC COVER 1 — Reference Only

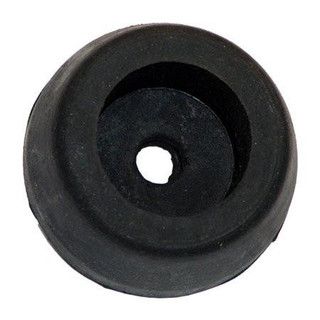

103 RUBBER FOOT 2 FOT-HFWMTBKZYTBQK $2.49
105 CHECK VALVE / NON RET. VLV. 1 CKV-PQPSGSFHF2M2R $13.95
107 DRAIN TAP 1 — Reference Only
108 AIR REGULATOR 1 REG-Z3TK7PKP415GC $20.95

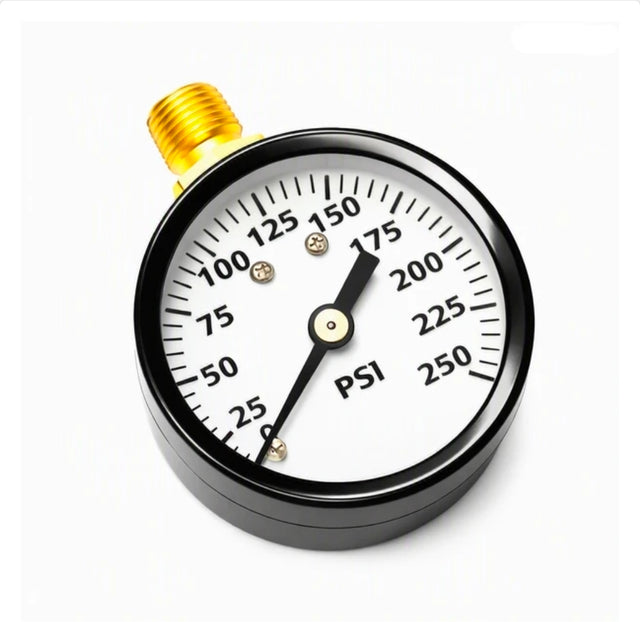

109 PRESSURE GAUGE 2 GAU-PA9QT52J40NA0 $7.95
110 SAFETY VALVE 1 — Reference Only
112 ELBOW 1/4”-BIC.10 1 — Reference Only

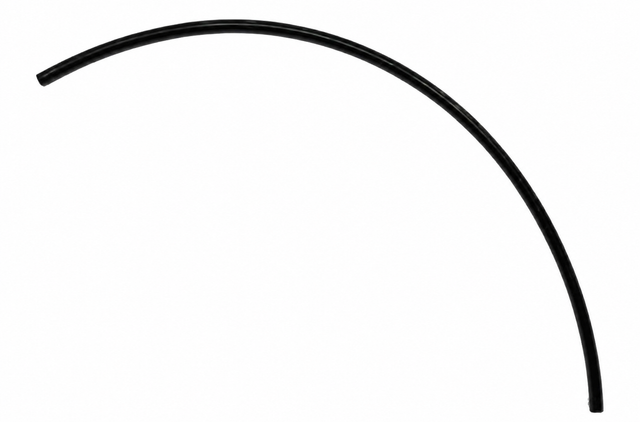

127 RILSAN TUBE 6/8 0.75 ft PIP-22DM75FMF2N7W $8.95
131 PRESSURE SWITCH 1 — Reference Only
132 CABLE WITH PLUG 1 — Reference Only
133 POWER SWITCH 1 SWT-9VG6X0YKR8R32 $5.95
134 WIRE 3 POLES 1 — Reference Only
145 DISCHARGE TUBE 1 — Reference Only
501 AIR RECEIVER 1 — Reference Only
502 SCREW HC 8X50 2 — Reference Only
505 WASHER 8X24X2 2 ORP-D730GCDGRGZQA $2.49
510 WIRE 1 POLES 1 — Reference Only
511 BRACKET FOR INSTRUMENTS KIT 2 — Reference Only
512 SCREW TE 6X16 6 — Reference Only

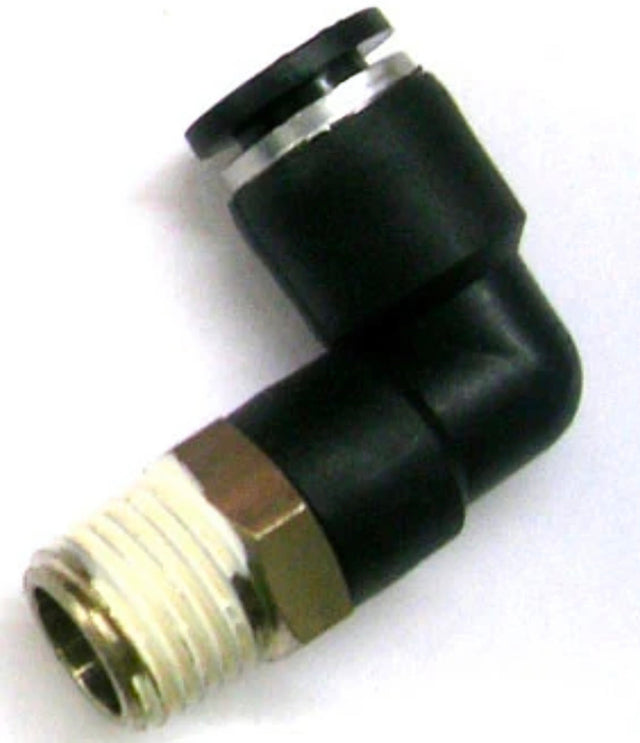

513 ELBOW SR 1/4” M X 8 2 ELB-86WGC1M7XQRVK $6.95
514 SCREW HCEI 6X20 WITH WASHER 4 SCR-GT3Y3C2VDRDQ3 $2.49
515 HANDLE 1 — Reference Only
517 LOCK CABLE 1 — Reference Only
518 SCREW PARKER AB 3,9X25 2 — Reference Only
520 SCREW M6 X 14 3 — Reference Only
521 WASHER 6X20X1,2 1 — Reference Only
522 SCREW PHILIPS M4X8 ZNT.R80 TT 2 SCR-NNEGF30BJQB9K $2.49
523 WASHER GROWER DIAM.5 2 — Reference Only
525 TELESCOPIC HANDLE 1 — Reference Only
526 SCREW (TCEI 6 X 10) 4 — Reference Only
527 WHEEL 2 — Reference Only
528 SCREW (TE 6 X 16) 4 — Reference Only
529 NOTCHED WASHER (D6) 4 — Reference Only
533 QUICK COUPLING 1 — Reference Only
537 PLUG 1/4” 1 — Reference Only

Catalog section

OL195B Pump Assembly

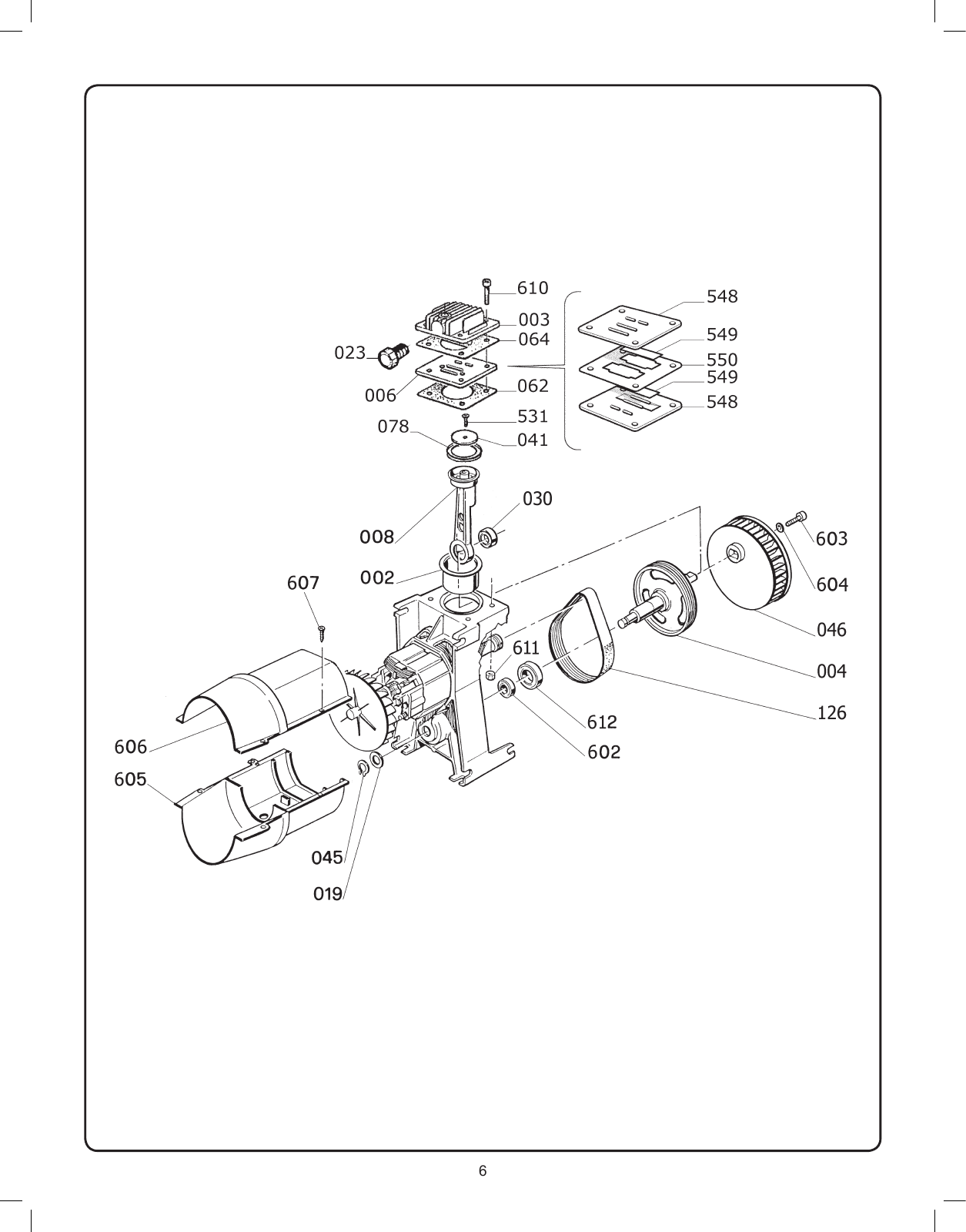

Husky H1506FWH – OL195B Pump Assembly
Parts in OL195B Pump Assembly
Diagram Callout # Part Name Item Quantity Used Part Number Price Part information
002 CYLINDER 1 CYL-GKVQX0HZZ7FG7 $8.95
003 PUMP HEAD 1 — Reference Only
004 CRANKSHAFT 1 — Reference Only
006 VALVE PLATE ASSY. 1 VPL-6447V5A40VK4S $9.95
008 CONNECTING ROD 1 CPK-AZ8VXV4MBQ6S5 $5.95
019 SHOULDER WASHER 1 — Reference Only
023 FILTER 1 — Reference Only
030 BEARING 6001 2RS 1 — Reference Only
041 CONNECTING ROD COVER 1 — Reference Only
045 SEEGER 12 UNI 7435 1 — Reference Only

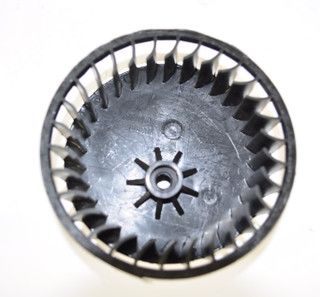

046 FAN 1 FAN-XZM6CJ62BRWXC $2.95
062 GASKET CYLINDER-HEAD 1 — Reference Only
064 PLATE-HEAD GASKET 1 GSK-XVRFK9379709A $3.95
078 PISTON RING 1 SEA-80XXCNXBVDZYE $7.95
126 BELT 1 BLT-DP4KHCKPB1MYS $13.95
531 SCREW TORX M5X16 TT 1 — Reference Only
548 VALVE PLATE 2 — Reference Only
549 VALVE BLADE 2 — Reference Only
550 GASKET VALVE PLATE 1 — Reference Only
602 BEARING 6001 2Z 1 — Reference Only
603 SCREW 5X16 LEFT 1 ORP-Z2BMXYTMK8KJZ $2.49
604 WASHER 6X12X1,5 1 — Reference Only
605 LOWER PART OF THE MOTOR PLASTIC COVER 1 — Reference Only
606 UPPER PART OF THE MOTOR PLASTIC COVER 1 — Reference Only
607 SCREW PARKER AB 3,9X13 4 — Reference Only
610 SCREW TCEI 6X35 4 — Reference Only
611 NUT M6 4 — Reference Only
612 BEARING 6203 2Z 1 — Reference Only
